BD-S700
product overview

The application areas of this product include small unmanned vehicles, drones, and other fields.Equipped with an advanced navigation fusion algorithm, this product is optimized for satellite signal loss, multipath interference and other situations. It can continuously output reliable navigation information to meet the needs of practical applications.

The IMU module with built-in MEMS is compensated by full temperature calibration, so that it has stable performance in complex temperature environment. The GNSS module adopts the all-system multi-frequency high-precision positioning and orientation board supporting Beidou system to effectively improve accuracy. In addition, the product can be equipped with raw data equipment, combined with post-processing software, to meet the application needs in the field of surveying and mapping.


Product characteristics

Protocol enrichment

High reliability

Full temperature range compensation

Rich interfaces

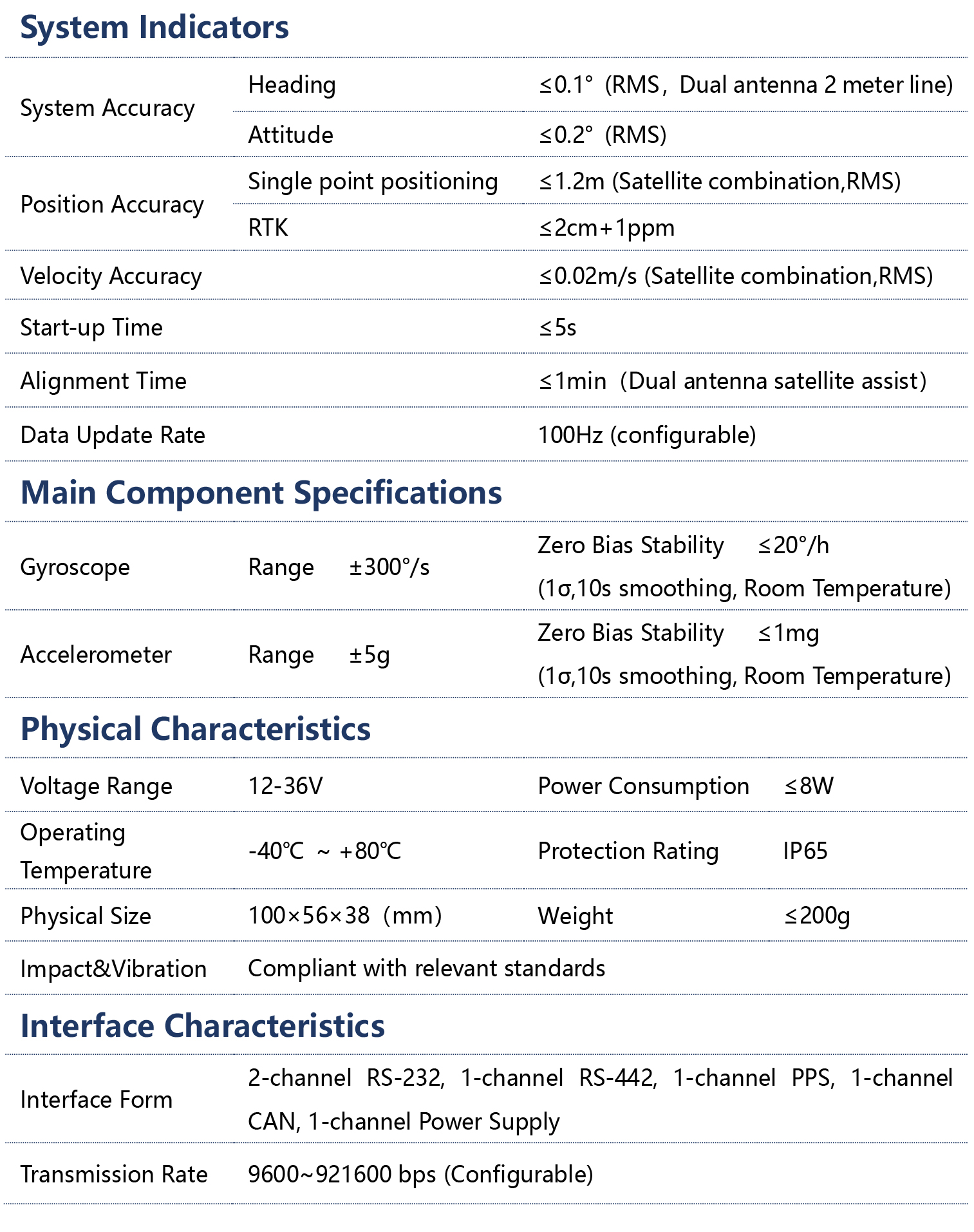

Product parameters
